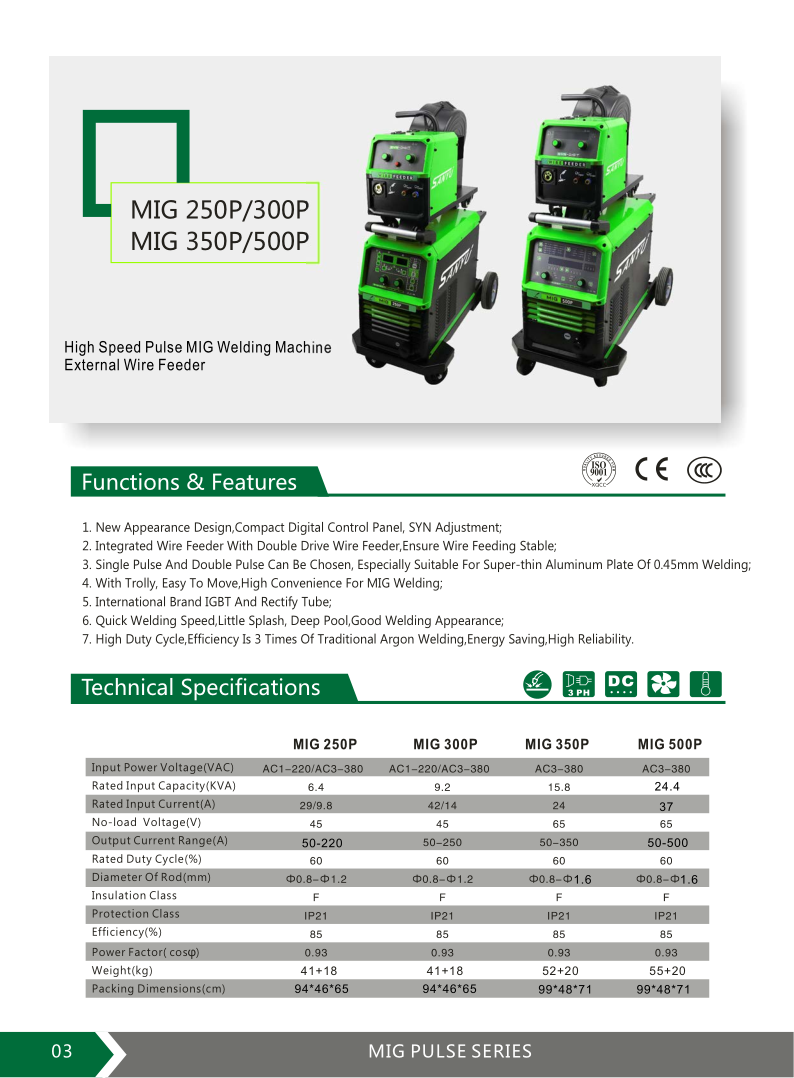

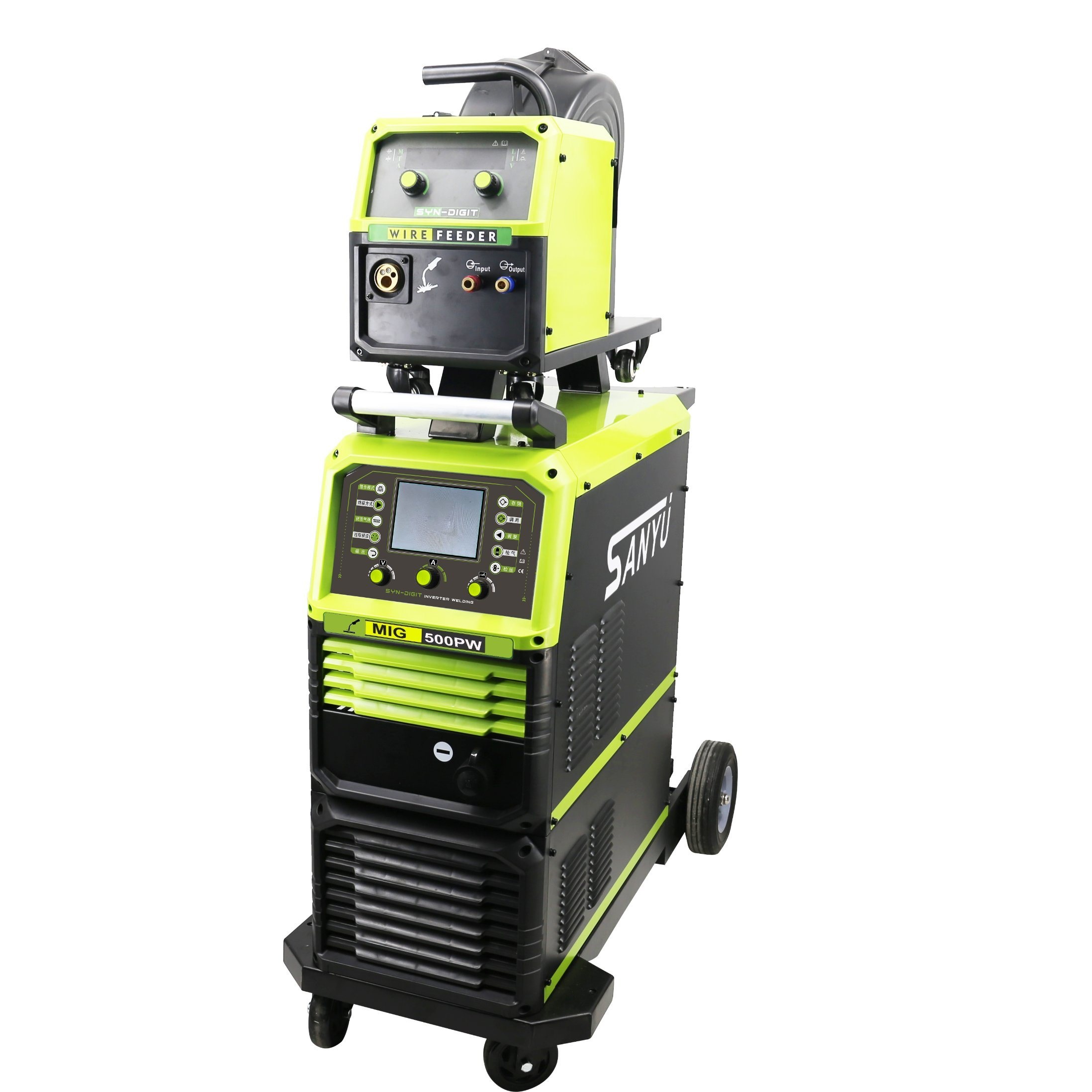

Features of MIG-250P/300P/350P/500P Pulse welding machine with external wire feeder
1. New Appearance Design, Compact Digital Control Panel, SYN Adjustment;
2. Integrated Wire Feeder With Double Drive Wire Feeder, Ensure Wire Feeding Stable;
3. Single Pulse And Double Pulse Can Be Chosen, Especially Suitable For Super-thin Aluminum Plate Of 0.45mm Welding;
4. With Trolly, Easy To Move, High Convenience For MIG Welding;
5. International Brand IGBT And Rectify Tube;
6. Quick Welding Speed, Little Splash, Deep Pool,Good Welding Appearance;
7. High Duty Cycle, Efficiency Is 3 Times Of Traditional Argon Welding, Energy Saving,High Reliability.
Model | MIG-250P | MIG-300P | MIG-350P | MIG-500P |
Input Power Voltage(VAC) | 1PH AC 220V/3PH AC 380V | 1PH AC 220V/3PH AC 380V | 3PH AC 380V | 3PH AC 380V |
Rated Input Capacity(KVA) | 6.4 | 9.2 | 15.8 | 15.8 |
Rated Input Current(A) | 29/9.8 | 42/14 | 24 | 37 |
No-load Voltage(V) | 45 | 45 | 65 | 65 |
Output Current Range(A) | 50-220 | 50-250 | 50-350 | 50-500 |
Rated Duty Cycle(%) | 60 | 60 | 60 | 60 |
Diameter Of Rod(mm) | 0.8-1.2 | 0.8-1.2 | 0.8-1.6 | 0.8-1.6 |
Insulation Class | F | F | F | F |
Protection Class | IP21 | IP21 | IP21 | IP21 |
Efficiency(%) | 85 | 85 | 85 | 85 |
Power Factor( cosφ) | 0.93 | 0.93 | 0.93 | 0.93 |
Weight(kg) | 41+18 | 41+18 | 52+20 | 52+20 |
Packing Dimensions(cm) | 94*46*65 | 94*46*65 | 99*48*71 | 99*48*71 |
