TIG series inverter technique make the welder run in high utlization rate of power, low open circuit loss and has good welding quality. It uses cerium-tungsten as electrode, argon gas as shield gas to perform the TIG welding, suitable for welding of alloy steel, stainless steel, copper, nickel and its alloy, titanium and its alloy etc.
Product Specification
MODEL | TIG-200P ACDC IGBT | TIG-250P ACDC IGBT | ||
power supply voltage | 230±10% | 230±10% | ||
rated input capacity | 5.9 | 9.6 | 6.6 | 11.2 |
frequency(inverter) | 50 | 50 | ||
rated input current | 26/13 | 42/18 | 29/16 | 49/22 |
output current range | 10-200 | 10-200 | 10-220 | 10-220 |
function | TIG | MMA | TIG | MMA |
duty cycle(40℃ 10min) | 25% 200A | 20% 200A | 25% 220A | 20% 220A |
60% 125A | 60% 110A | 60% 130A | 60% 115A | |
100% 100A | 100% 90A | 100% 110A | 100% 110A | |
no load voltage | 62 | 62 | ||
efficiency | 85 | 85 | ||
power factor | 0.76 | 0.76 | ||
IP | 21 | 21 | ||
insulation class | H | H | ||
cooling way | FAN & AIR | FAN & AIR | ||
dimension | 489X210X327 | 489X210X327 | ||
wire | Ø2.5,Ø3.2,Ø4.0 | Ø2.5,Ø3.2,Ø4.0 | ||
electrode type | 6013,7018,etc | 6013,7018,etc | ||
net weight | 12 | |||
Product Features
1. HF TIG, LIFT TIG & MMA function
2. Arc force and hot start in MMA mode
3. Digital display and control, high performance MCU
4. Adopt advanced single IGBT technology, increased reliability
5. Automatic storage for preset data
6. Pulse TIG function and all the pulse parameters can be adjustable
7. International patented design, unique appearance.

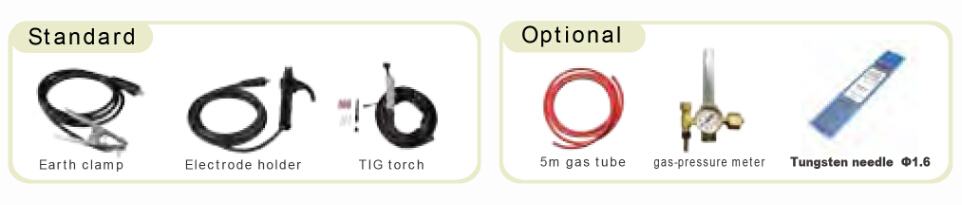

Accessories
